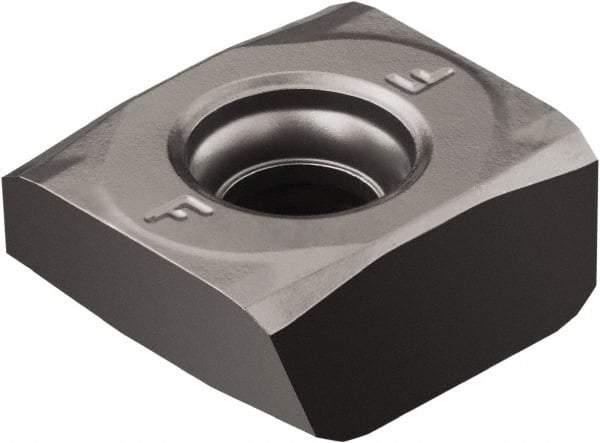

Sandvik Coromant - N260.81204 L Grade HM Carbide Milling Insert - Uncoated, 12.7mm Thick
Item #: 49543721
Brand: Sandvik Coromant
Model #: 5737004
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N260.8 |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | HM |
| Coating | Uncoated |
| Width (mm) | 4.76 |
| Width (Decimal Inch) | 0.1875 |
| Thickness (mm) | 12.70 |
| Thickness (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Insert Hand | Neutral |
| Chipbreaker | L |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Cutting Edge Style | Rounded |
| ISO Number | N260.8-1204-L HM |
