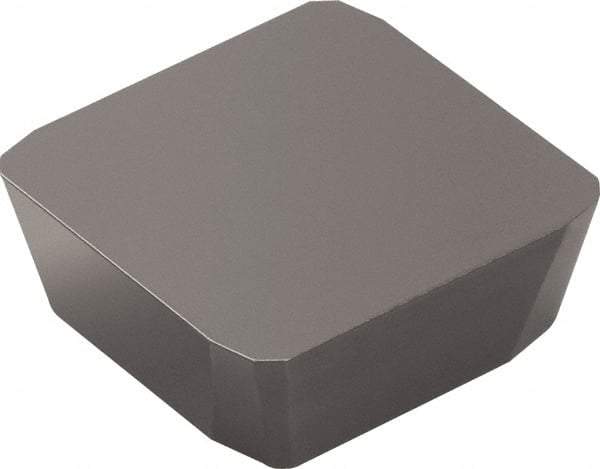

Sandvik Coromant - SMK42 Grade 530 Cermet Milling Insert - Uncoated, 3.17mm Thick, 12.7mm Inscribed Circle
Item #: 49543648
Brand: Sandvik Coromant
Model #: 5751225
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SMK |
| Insert Size | 42 |
| Material | Cermet |
| Manufacturer's Grade | 530 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.17 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Edge Style | Sharp |
| ISO Number | SPKN 12 03 ED L 530 |
