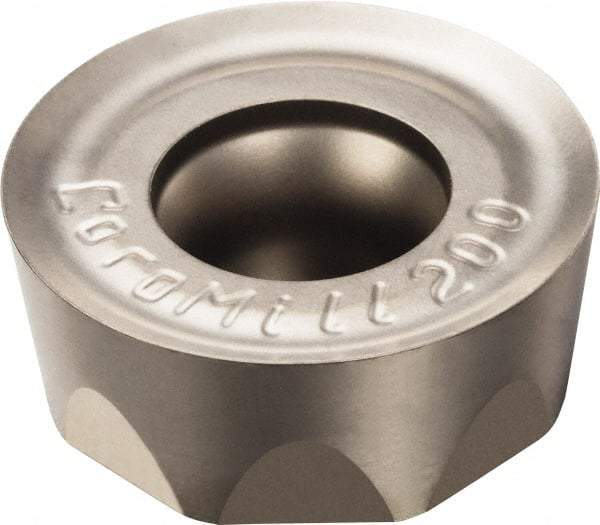

Sandvik Coromant - RCHT10T3M0 KL Grade H13A Carbide Milling Insert - Uncoated, 3.97mm Thick, 10mm Inscribed Circle
Item #: 49543424
Brand: Sandvik Coromant
Model #: 5739906
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 7.000 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | KL |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Cutting Edge Style | Sharp |
| ISO Number | RCHT 10 T3 M0-KL H13A |
