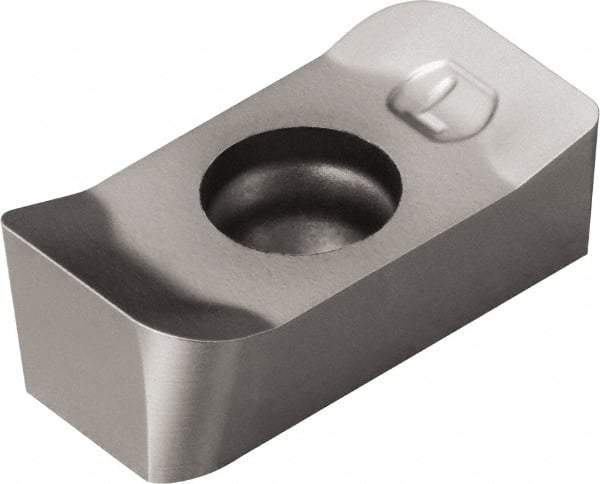

Sandvik Coromant - L331.1A145048 WL Grade H10F Carbide Milling Insert - Uncoated, 4.95mm Thick
Item #: 49543333
Brand: Sandvik Coromant
Model #: 5734392
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | L331.1A |
| Insert Size | 145048 |
| Material | Carbide |
| Manufacturer's Grade | H10F |
| Coating | Uncoated |
| Width (mm) | 11.50 |
| Width (Decimal Inch) | 0.4528 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 0.000 |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Left Hand |
| Chipbreaker | WL |
| Maximum Depth of Cut (mm) | 13.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5394 |
| Cutting Edge Style | Sharp |
| ISO Number | L331.1A-14 50 48H-WL H10F |
