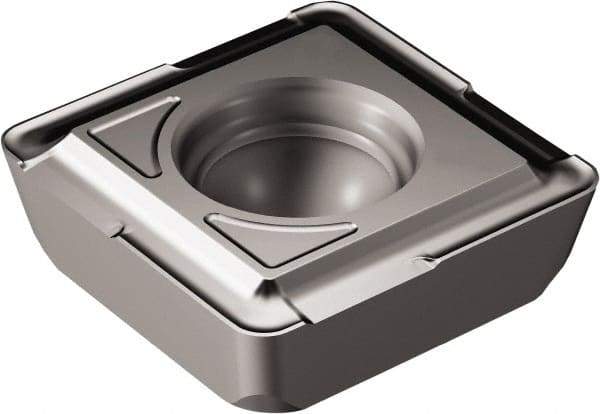

Sandvik Coromant - 880202 GT Grade 4324 Carbide Indexable Drill Insert - CVD Ti(C,N)+Al2O3 Finish, Square, 5.1mm Inscribed Circle
Item #: 49537962
Brand: Sandvik Coromant
Model #: 6626822
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 202 |
| Material | Carbide |
| Manufacturer's Grade | 4324 |
| Inscribed Circle (mm) | 5.10 |
| Inscribed Circle (Decimal Inch) | 0.2008 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.019685 |
| Shape | Square |
| Length (mm) | 19 |
| Length (Decimal Inch) | 0.7480 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Coating | CVD Ti(C,N)+Al2O3 |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GT |
