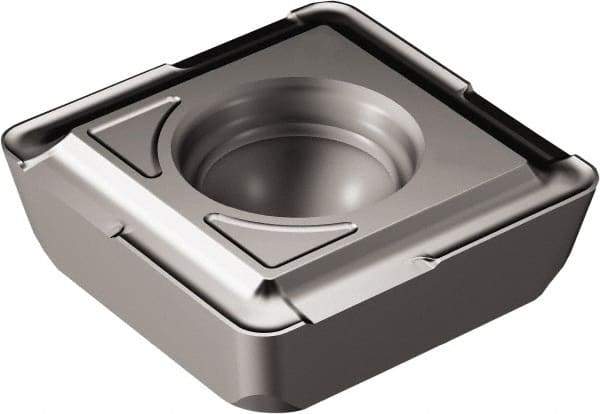

Sandvik Coromant - 880704 GT Grade 4344 Carbide Indexable Drill Insert - PVD (Ti,Al)N2 Finish, Square, 1/2" Inscribed Circle
Item #: 49537731
Brand: Sandvik Coromant
Model #: 6770748
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 704 |
| Material | Carbide |
| Manufacturer's Grade | 4344 |
| Inscribed Circle (mm) | 12.65 |
| Inscribed Circle (Decimal Inch) | 0.4980 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.047244 |
| Shape | Square |
| Length (mm) | 19 |
| Length (Decimal Inch) | 0.7480 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Coating | PVD (Ti,Al)N2 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GT |
