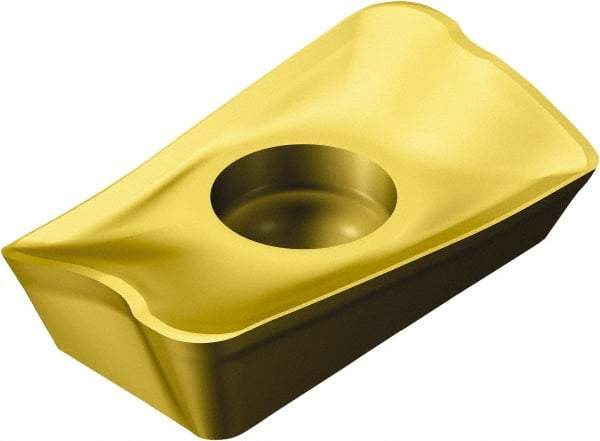

Sandvik Coromant - R39011T331 ML Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3.59mm Thick
Item #: 49518566
Brand: Sandvik Coromant
Model #: 5853489
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 11T331 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 6.80 |
| Width (Decimal Inch) | 0.2677 |
| Thickness (mm) | 3.59 |
| Thickness (Decimal Inch) | 0.1413 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 21.000 |
| Coating Process | CVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | ML |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Sharp |
| ISO Number | R390-11 T3 31E-ML S40T |
