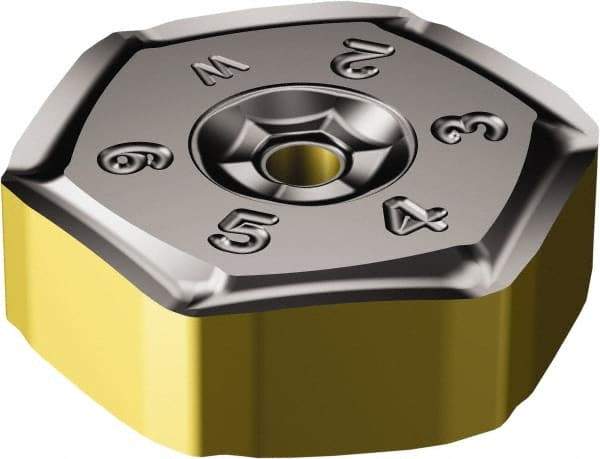

Sandvik Coromant - HNEF090508 KW Grade 3330 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.56mm Thick, 16.26mm Inscribed Circle
Item #: 49518319
Brand: Sandvik Coromant
Model #: 6428168
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNEF |
| Insert Size | 090508 |
| Material | Carbide |
| Manufacturer's Grade | 3330 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 16.26 |
| Inscribed Circle (Decimal Inch) | 0.6402 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Relief Angle | 0.000 |
| Rake Angle | 10 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Left Hand |
| Chipbreaker | KW |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Rounded |
| ISO Number | HNEF 09 05 08L-KW 3330 |
