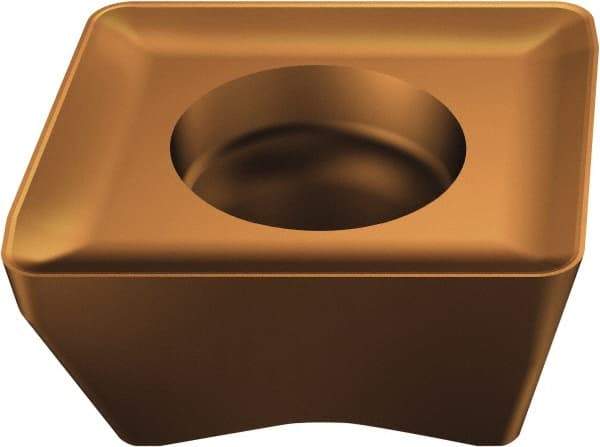

Sandvik Coromant - 690140631 SL Grade 1030 Carbide Milling Insert - TiAlN Finish, 6.35mm Thick
Item #: 49517394
Brand: Sandvik Coromant
Model #: 5764886
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 690 |
| Insert Size | 140631 |
| Material | Carbide |
| Manufacturer's Grade | 1030 |
| Coating | TiAlN |
| Width (mm) | 14.50 |
| Width (Decimal Inch) | 0.5709 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | SL |
| Cutting Edge Style | Rounded |
| ISO Number | 690-140631M-E-SL 1030 |
