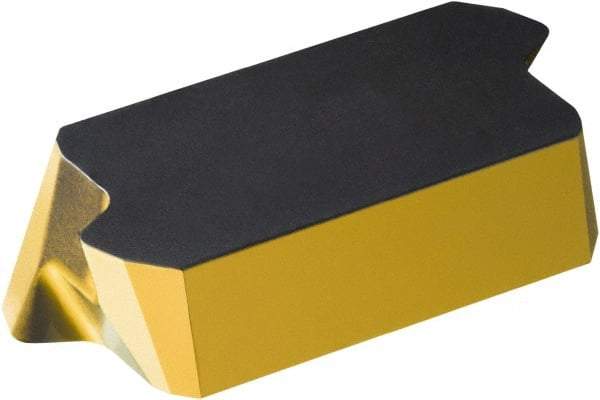

Sandvik Coromant - LNCX1806 Grade 4220 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 6.4mm Thick
Item #: 49517279
Brand: Sandvik Coromant
Model #: 5735091
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNCX |
| Insert Size | 1806 |
| Material | Carbide |
| Manufacturer's Grade | 4220 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 10.00 |
| Width (Decimal Inch) | 0.3937 |
| Thickness (mm) | 6.40 |
| Thickness (Decimal Inch) | 0.2520 |
| Relief Angle | 0.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Edge Style | Rounded |
| ISO Number | LNCX 18 06 AZ L-11 4220 |
