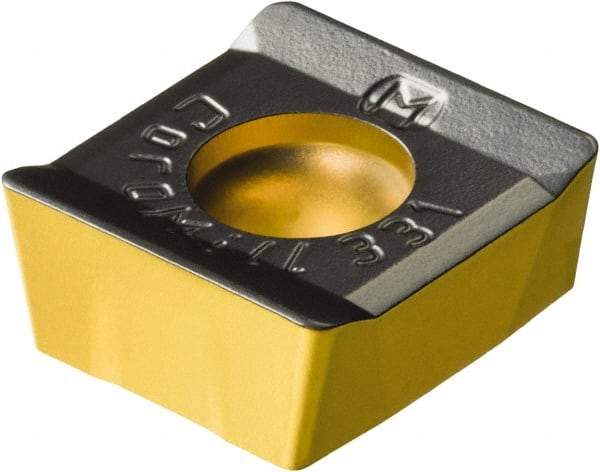

Sandvik Coromant - N331.1A054508 KM Grade 3220 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4.45mm Thick
Item #: 49517261
Brand: Sandvik Coromant
Model #: 5737238
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 054508 |
| Material | Carbide |
| Manufacturer's Grade | 3220 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3740 |
| Thickness (mm) | 4.45 |
| Thickness (Decimal Inch) | 0.1752 |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 5.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.2244 |
| Cutting Edge Style | Rounded |
| ISO Number | N331.1A-05 45 08E-KM3220 |
