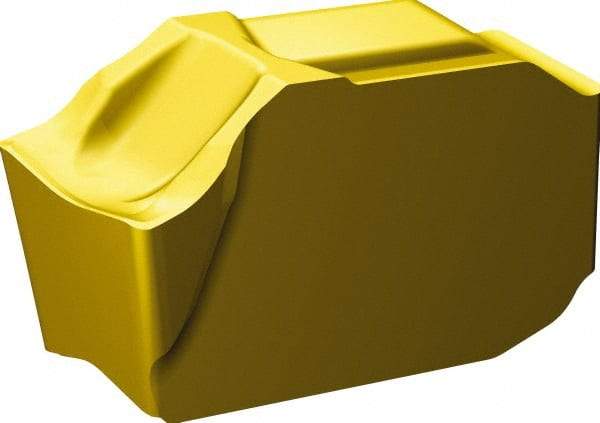

Sandvik Coromant - HQD-N ML Grade 2040, 4mm Cutting Width Carbide Grooving Insert - Neutral, TiCN/Al2O3/TiN Finish
Item #: 49517006
Brand: Sandvik Coromant
Model #: 6656861
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | H |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.00 |
| Cutting Height (Decimal Inch) | 0.1575 |
| Relief Angle | 7 |
| Insert Seat Size | H |
| Chipbreaker | ML |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.4724 |
| Series | CoroMill QD |
| ISO Number | QD-NH-0400-025E-ML 2040 |
| Insert Thickness (Decimal Inch) | 0.1575 |
