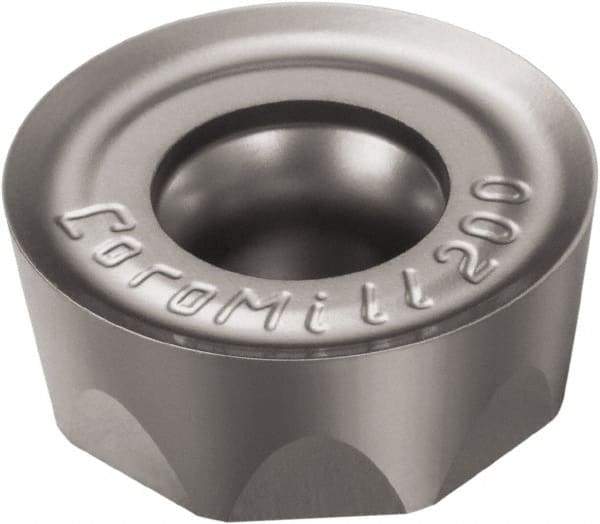

Sandvik Coromant - RCHT1204M0 PL Grade 530 Cermet Milling Insert - Uncoated, 4.76mm Thick, 12mm Inscribed Circle
Item #: 49516644
Brand: Sandvik Coromant
Model #: 5739884
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHT |
| Insert Size | 1204M0 |
| Material | Cermet |
| Manufacturer's Grade | 530 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Relief Angle | 7.000 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 1.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.0693 |
| Cutting Edge Style | Sharp |
| ISO Number | RCHT 12 04 M0-PL 530 |
