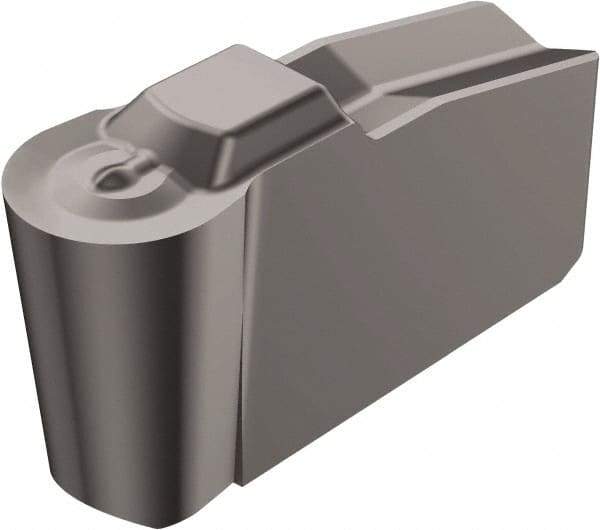

Sandvik Coromant - N151.240, H13A Grade Carbide Profiling Insert - Uncoated, 7° Relief Angle, 8.11mm Thick, 2.25mm Corner Radius
Item #: 49509474
Brand: Sandvik Coromant
Model #: 5738344
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N151.2 |
| Insert Size | 40 |
| Manufacturer's Grade | H13A |
| Thickness (mm) | 8.11 |
| Thickness (Decimal Inch) | 0.3191 |
| Corner Radius (mm) | 2.25 |
| Corner Radius (Decimal Inch) | 0.0886 |
| Relief Angle | 7 |
| Coating | Uncoated |
| Insert Length (mm) | 6.80 |
| Insert Length (Decimal Inch) | 0.2677 |
| Chipbreaker | 4P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max Q-Cut |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Clamp |
