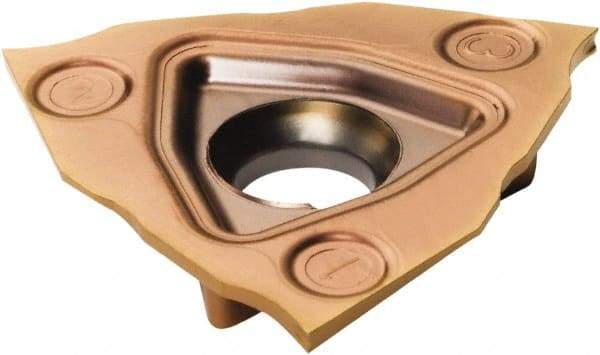

Sandvik Coromant - L123T3 CS Grade 1125, 1mm Cutting Width Carbide Cutoff Insert - TiAlN Finish
Item #: 49508633
Brand: Sandvik Coromant
Model #: 5734062
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L123 |
| Insert Size | T3 |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Series | CoroCut 3 |
| Relief Angle | 7 |
| Chipbreaker | CS |
| Maximum Depth of Cut (mm) | 4.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0 |
| Corner Radius (mm) | 0 |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Seat Size | T |
