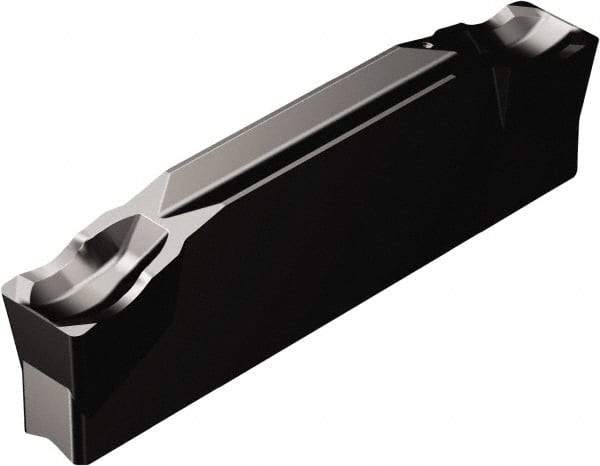

Sandvik Coromant - N123G2 CR Grade 3115, 3mm Cutting Width Carbide Cutoff Insert - 0.3mm Corner Radius, TiCN/Al2O3 Finish
Item #: 49508526
Brand: Sandvik Coromant
Model #: 5735826
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N123 |
| Insert Size | G2 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 3115 |
| Coating | TiCN/Al2O3 |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CR |
| Maximum Depth of Cut (mm) | 18.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.7402 |
| Coating Process | CVD |
| Corner Radius (Decimal Inch) | 0.011811 |
| Corner Radius (mm) | 0.3 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | G |
