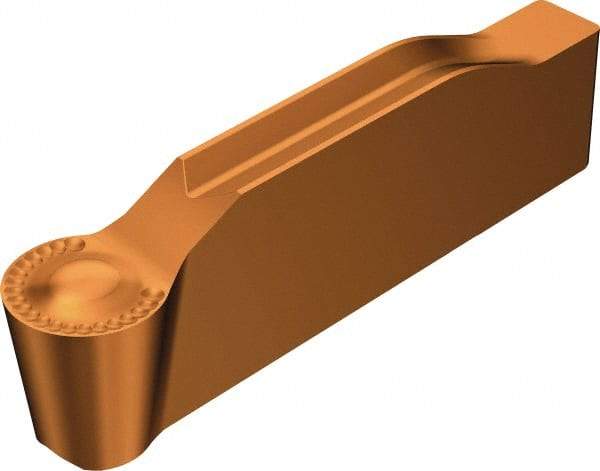

Sandvik Coromant - N123L1, 1125 Grade Carbide Profiling Insert - TiAlN Finish, 7° Relief Angle, 6.05mm Thick, 4mm Corner Radius
Item #: 49508450
Brand: Sandvik Coromant
Model #: 6199519
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N123 |
| Insert Size | L1 |
| Manufacturer's Grade | 1125 |
| Thickness (mm) | 6.05 |
| Thickness (Decimal Inch) | 0.2382 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Relief Angle | 7 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | RO |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut 1-2 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Insert Holding Method | Clamp |
