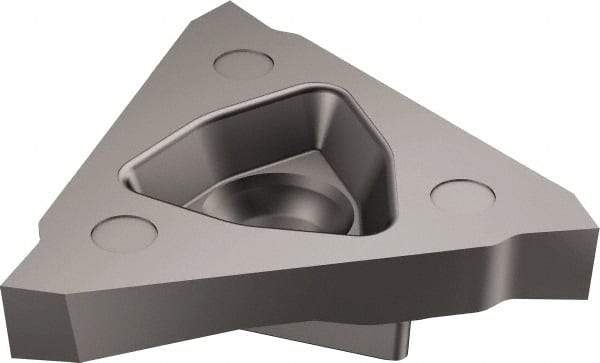

Sandvik Coromant - U3N123 BG Grade H10F, 3.4mm Cutting Width Carbide Grooving Insert - 1/4" Max Depth of Cut, Neutral, Uncoated
Item #: 49508369
Brand: Sandvik Coromant
Model #: 5736620
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | U3 |
| Material | Carbide |
| Cutting Width (mm) | 3.40 |
| Cutting Width (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Manufacturer's Grade | H10F |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.64 |
| Cutting Height (Decimal Inch) | 0.2220 |
| Relief Angle | 7 |
| Insert Seat Size | U |
| Chipbreaker | BG |
| Overall Length (mm) | 11.10 |
| Overall Length (Decimal Inch) | 0.4370 |
| Series | CoroCut 3 |
| ISO Number | N123U3-0340-BG H10F |
| Insert Thickness (Decimal Inch) | 0.2220 |
