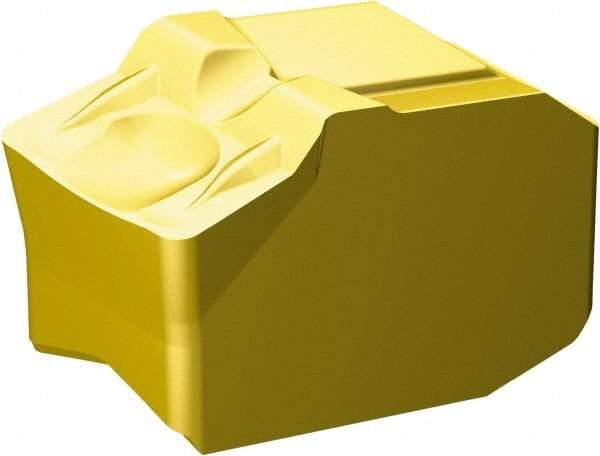

Sandvik Coromant - LQD-N GM Grade 1135, 8mm Cutting Width Carbide Grooving Insert - Neutral, TiCN/Al2O3/TiN Finish
Item #: 49508088
Brand: Sandvik Coromant
Model #: 6398201
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | L |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | 1135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.50 |
| Cutting Height (Decimal Inch) | 0.2559 |
| Relief Angle | 7 |
| Insert Seat Size | L |
| Chipbreaker | GM |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | CoroCut QD |
| ISO Number | QD-NL-0800-0008-GM 1135 |
| Insert Thickness (Decimal Inch) | 0.2559 |
