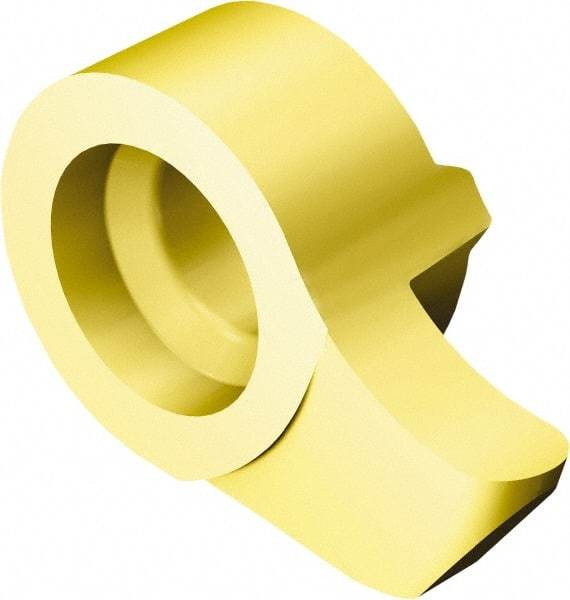

Sandvik Coromant - MB07R1200610L102507, 1025 Grade Carbide Profiling Insert - TiAlN/TiN Finish, 2° Relief Angle, 1.2mm Thick, 0.6mm Corner Radius
Item #: 49507858
Brand: Sandvik Coromant
Model #: 5735480
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MB07R1200610L1025 |
| Insert Size | 07 |
| Manufacturer's Grade | 1025 |
| Thickness (mm) | 1.20 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Relief Angle | 2 |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.1850 |
| Length (mm) | 4.70 |
| Coating Process | PVD |
| Primary Workpiece Material | N; P; S; M |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroCut MB |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
