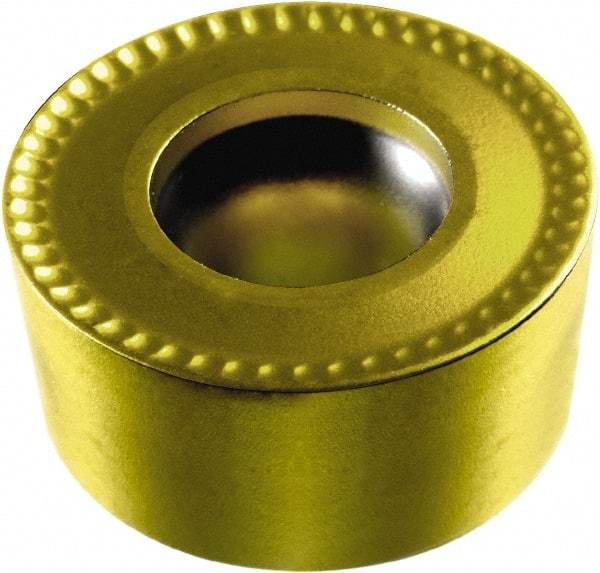

Sandvik Coromant - RCMT3209M0 RCMT Grade 235 Carbide Turning Insert - TiCN/TiN Finish, Round, 32mm Inscr Circle, 3/8" Thick
Item #: 49458656
Brand: Sandvik Coromant
Model #: 5741100
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 3209M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 32.00 |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3748 |
| Thickness (mm) | 9.52 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Chip Breaker | RCMT |
| Hole Diameter (mm) | 9.70 |
| Hole Diameter (Decimal Inch) | 0.3819 |
| ISO Number | RCMT3209M0235 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | 5741100 |
| Primary Workpiece Material | M |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
