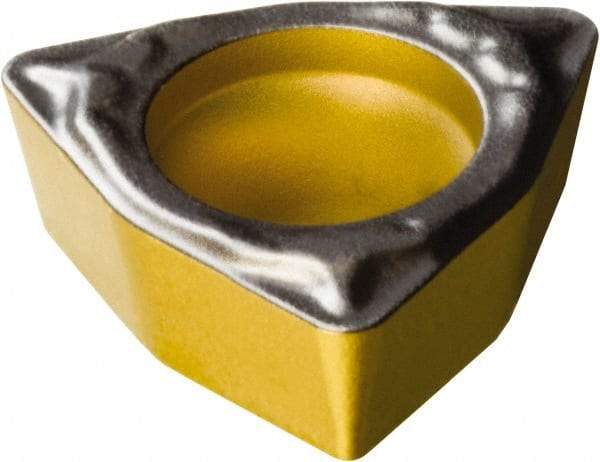

Sandvik Coromant - WPMT21.51 PF Grade 4315 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 49456577
Brand: Sandvik Coromant
Model #: 6612599
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 4.34 |
| Length (Decimal Inch) | 0.1709 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 4315 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PF |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | WPMT040204PF4315 |
| Relief Angle | 11 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6612599 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 111 |
| Maximum Depth of Cut (mm) | 3.94 |
| Maximum Depth of Cut (Decimal Inch) | 0.1551 |
| Insert Holding Method | Screw |
| Shape | Trigon |
