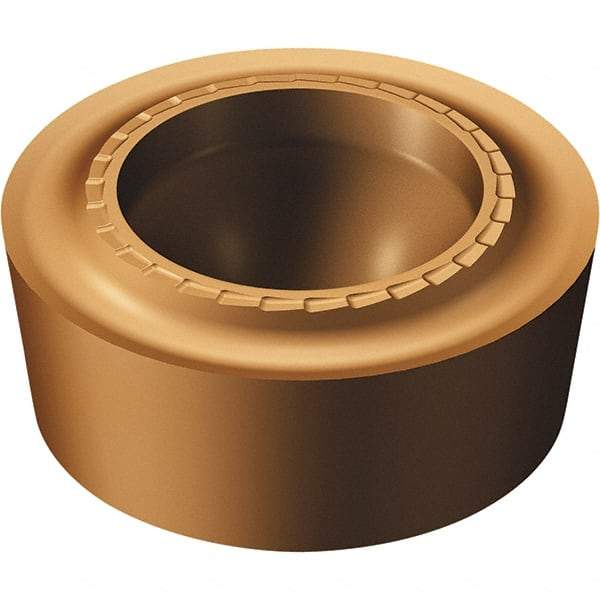

Sandvik Coromant - RCMT1606M0 SM Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, Round, 5/8" Inscr Circle, 1/4" Thick
Item #: 49455967
Brand: Sandvik Coromant
Model #: 5740732
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1606M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | SM |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| ISO Number | RCMT1606M0SM1125 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5740732 |
| Primary Workpiece Material | M; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
