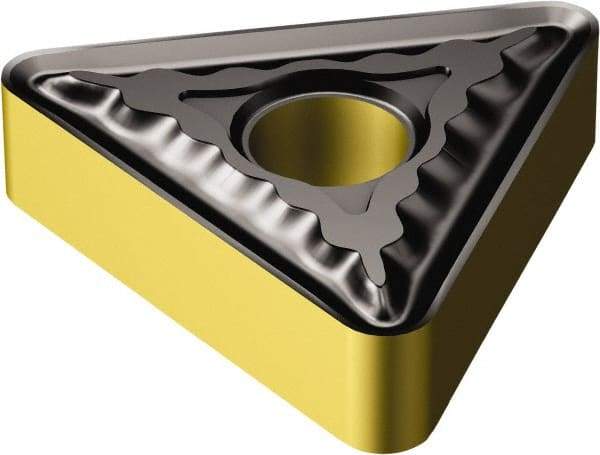

Sandvik Coromant - TNMG542 QM Grade 235 Carbide Turning Insert - TiCN/TiN Finish, 60° Triangle, 5/8" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 49452402
Brand: Sandvik Coromant
Model #: 5754525
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 542 |
| Material | Carbide |
| Length (mm) | 27.50 |
| Length (Decimal Inch) | 1.0827 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Chip Breaker | QM |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | TNMG270608QM235 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | 5754525 |
| Primary Workpiece Material | M |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 26.70 |
| Maximum Depth of Cut (Decimal Inch) | 1.0512 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
