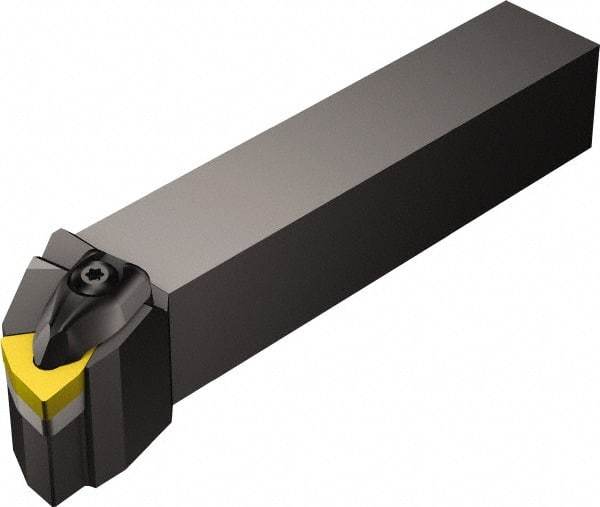

Sandvik Coromant - DWLN, Right Hand Cut, -5° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, WNMG 06 04 08 Insert Compatibility, Series T-Max P
Item #: 49438203
Brand: Sandvik Coromant
Model #: 5734775
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DWLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | WNMG 06 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 27.10 |
| Head Length (Decimal Inch) | 1.0669 |
| Toolholder Material | Steel |
