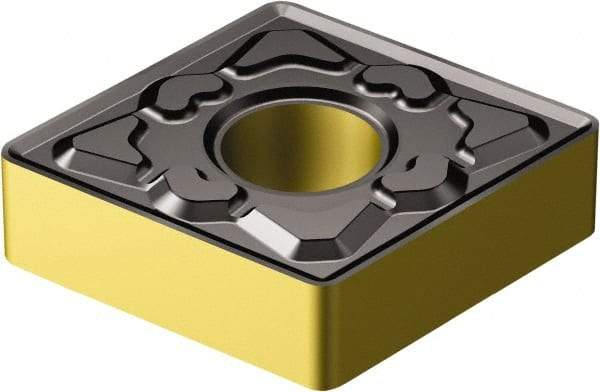

Sandvik Coromant - CNMG644 KM Grade 3210 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 49429038
Brand: Sandvik Coromant
Model #: 5725573
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 644 |
| Material | Carbide |
| Length (mm) | 19.34 |
| Length (Decimal Inch) | 0.7614 |
| Inscribed Circle (mm) | 19.00 |
| Inscribed Circle (Decimal Inch) | 0.7480 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | 3210 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | KM |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | CNMG190616KM3210 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5725573 |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 17.74 |
| Maximum Depth of Cut (Decimal Inch) | 0.6984 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
