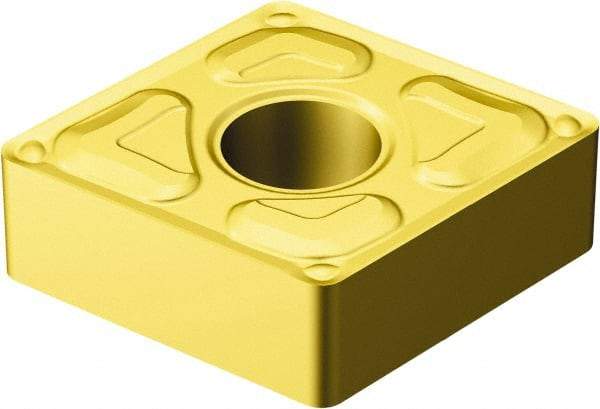

Sandvik Coromant - CNMG432 XF Grade GC30 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49424252
Brand: Sandvik Coromant
Model #: 6107606
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5079 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | GC30 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | XF |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2032 |
| ISO Number | CNMG120408XFGC30 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6107606 |
| Primary Workpiece Material | K; P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 12.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.4764 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
