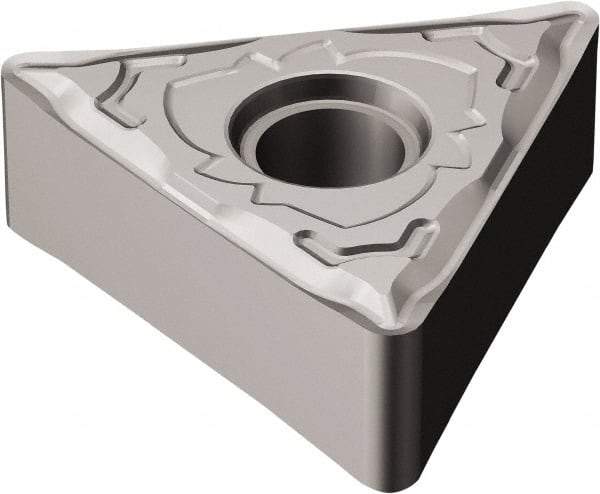

Sandvik Coromant - TNMG331 SF Grade H13A Carbide Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 49420508
Brand: Sandvik Coromant
Model #: 5891416
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | SF |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNMG160404SFH13A |
| Relief Angle | 0 |
| Manufacturers Catalog Number | 5891416 |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
