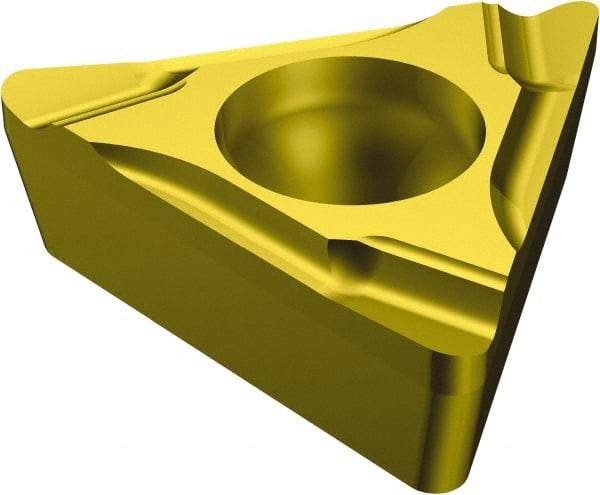

Sandvik Coromant - TCGT1.81.50 K Grade 1525 Cermet Turning Insert - TiCN/TiN Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 49418148
Brand: Sandvik Coromant
Model #: 5752104
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 1.81.50 |
| Material | Cermet |
| Length (mm) | 9.37 |
| Length (Decimal Inch) | 0.3689 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 1525 |
| Coating | TiCN/TiN |
| Chip Breaker | K |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | TCGT090202LK1525 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5752104 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 9.17 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Insert Holding Method | Screw |
| Shape | Triangle |
