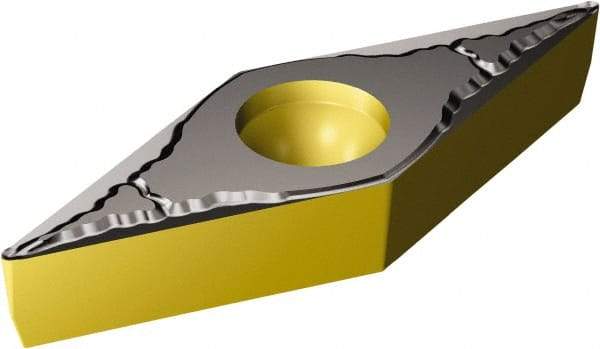

Sandvik Coromant - VBMT332 KM Grade 3225 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49408933
Brand: Sandvik Coromant
Model #: 6868316
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 332 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 3225 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | KM |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VBMT160408KM3225 |
| Relief Angle | 5 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6868316 |
| Primary Workpiece Material | K |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 15.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.6224 |
| Insert Holding Method | Screw |
| Shape | Diamond |
