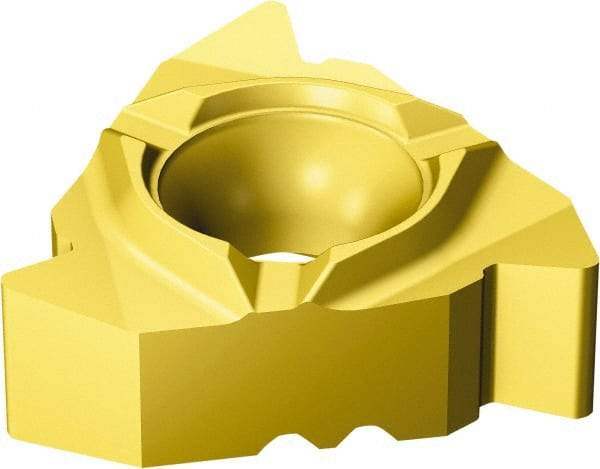

Sandvik Coromant - 26616 A Grade 1135, External Partial Profile 60° Threading Insert - 10 to 20mm & 12 to 24 TPI Ext Pitch, Left Hand Insert, Carbide
Item #: 49378219
Brand: Sandvik Coromant
Model #: 5857489
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Manufacturer's Grade | 1135 |
| External Pitch/TPI | 1.00-2.00 mm; 12-24 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266LG16VM01A001M1135 |
| Corner Radius (mm) | 0.13 |
| Corner Radius (Decimal Inch) | 0.0051 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5857489 |
