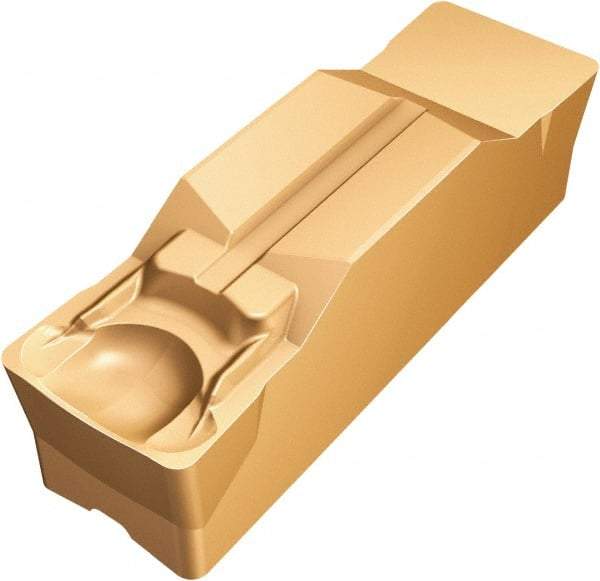

Sandvik Coromant - M1N123 GM Grade 1145, 11mm Cutting Width Carbide Grooving Insert - Neutral, 0.8mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 49348220
Brand: Sandvik Coromant
Model #: 5736560
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | M1 |
| Material | Carbide |
| Cutting Width (mm) | 11.00 |
| Cutting Width (Decimal Inch) | 0.4331 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | M |
| Chipbreaker | GM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123M111000008GM1145 |
| Manufacturers Catalog Number | 5736560 |
| Insert Thickness (Decimal Inch) | 0.2776 |
| Insert Thickness (mm) | 7.0500 |
