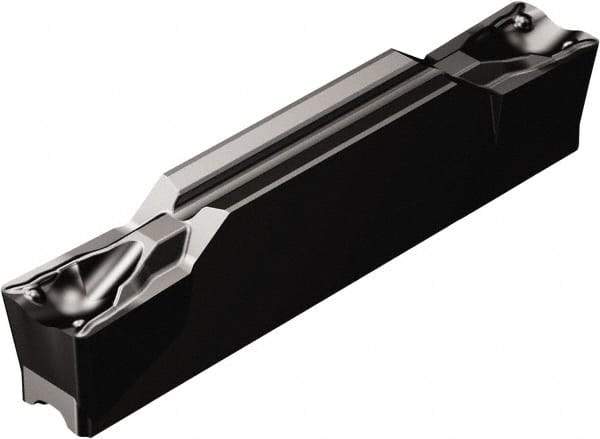

Sandvik Coromant - 800N123L2 TF Grade 3115, 8mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN/Al2O3 Finish
Item #: 49347990
Brand: Sandvik Coromant
Model #: 5736919
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123L2 |
| Insert Size | 800 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 4.00 |
| Manufacturer's Grade | 3115 |
| Coating | TiCN/Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | TF |
| Corner Radius (mm) | 0.80 |
| Series | CoroCut 1-2 |
| ISO Number | N123L208000008TF3115 |
| Manufacturers Catalog Number | 5736919 |
| Insert Thickness (mm) | 6.0500 |
