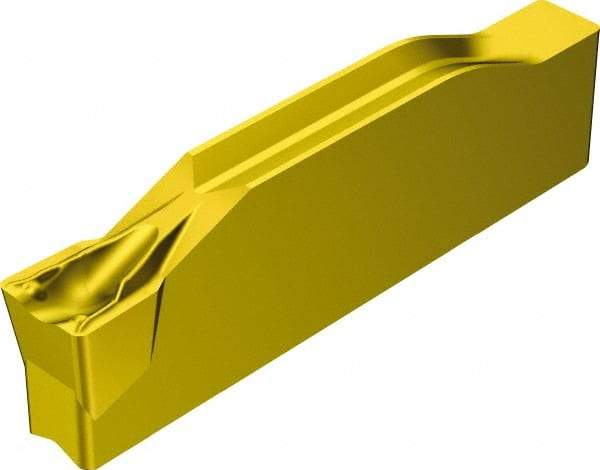

Sandvik Coromant - 400N123H1 TF Grade 2135, 4mm Cutting Width Carbide Grooving Insert - 2.2mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49347529
Brand: Sandvik Coromant
Model #: 5735924
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123H1 |
| Insert Size | 400 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 2.20 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | TF |
| Corner Radius (mm) | 0.40 |
| Coating Process | CVD |
| Series | CoroCut 1-2 |
| ISO Number | N123H104000004TF2135 |
| Manufacturers Catalog Number | 5735924 |
| Insert Thickness (mm) | 4.3500 |
