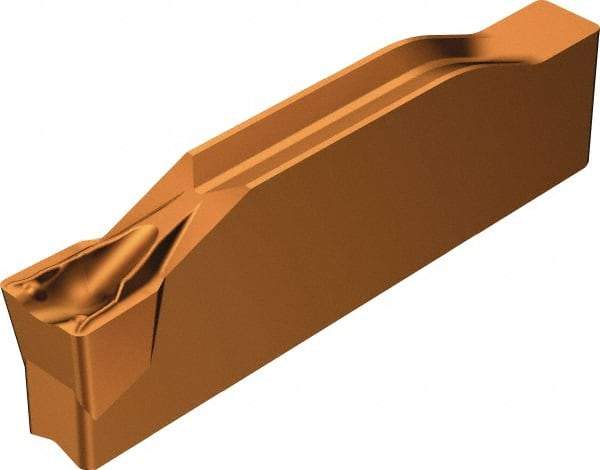

Sandvik Coromant - 300N123G1 TF Grade 1145, 3mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Neutral, 0.3mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 49347453
Brand: Sandvik Coromant
Model #: 5736272
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123G1 |
| Insert Size | 300 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 1.80 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | TF |
| Corner Radius (mm) | 0.30 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123G103000003TF1145 |
| Manufacturers Catalog Number | 5736272 |
| Insert Thickness (mm) | 4.3000 |
