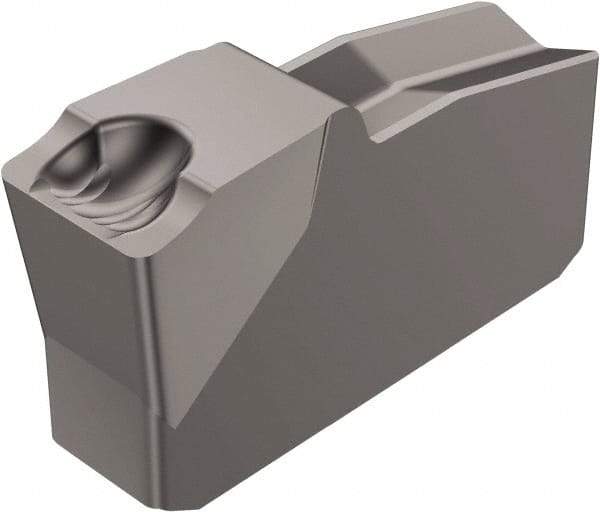

Sandvik Coromant - 30030N151.2 5G Grade 525, 3mm Cutting Width Carbide Grooving Insert - Neutral, 0.3mm Corner Radius, Uncoated
Item #: 49347388
Brand: Sandvik Coromant
Model #: 5736824
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 30030 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | 30 |
| Chipbreaker | 5G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Series | T-Max Q-Cut |
| ISO Number | N1512300305G525 |
| Manufacturers Catalog Number | 5736824 |
| Insert Thickness (Decimal Inch) | 0.2673 |
| Insert Thickness (mm) | 6.7900 |
