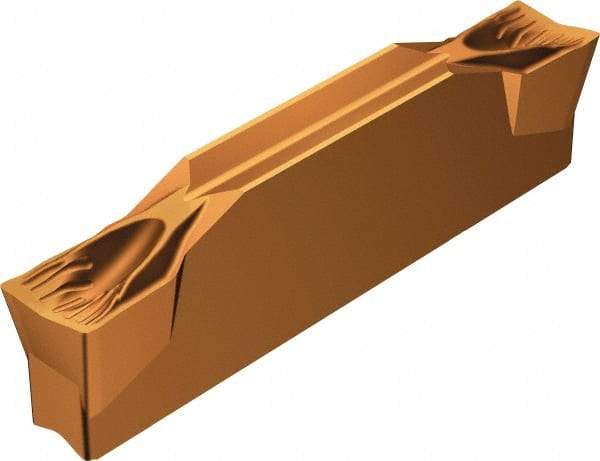

Sandvik Coromant - R123H2H CF 1145 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - 5° Right Hand Lead Angle, 0.0059" Cnr Rad, Oxide Coated
Item #: 49347107
Brand: Sandvik Coromant
Model #: 5741442
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | R123H2 |
| Insert Size | H |
| Lead Angle Direction | Right Hand |
| Lead Angle | 5 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | 1145 |
| Coating | Oxide |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CF |
| Maximum Depth of Cut (mm) | 25.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.9961 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0059 |
| Corner Radius (mm) | 0.15 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | H |
| Width Tolerance | +0.004/-0 (Inch) |
| Manufacturers Catalog Number | 5741442 |
