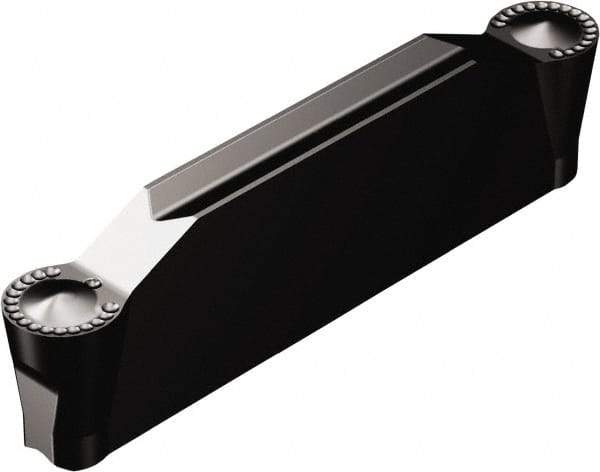

Sandvik Coromant - 0318N123 Grade 3115, 3.18mm Cutting Width Carbide Grooving Insert - 18.6mm Max Depth of Cut, Neutral, 1.59mm Corner Radius, TiCN/Al2O3 Finish
Item #: 49347032
Brand: Sandvik Coromant
Model #: 5735874
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0318 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 18.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.7323 |
| Manufacturer's Grade | 3115 |
| Coating | TiCN/Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0626 |
| Coating Process | MT-CVD |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5735874 |
