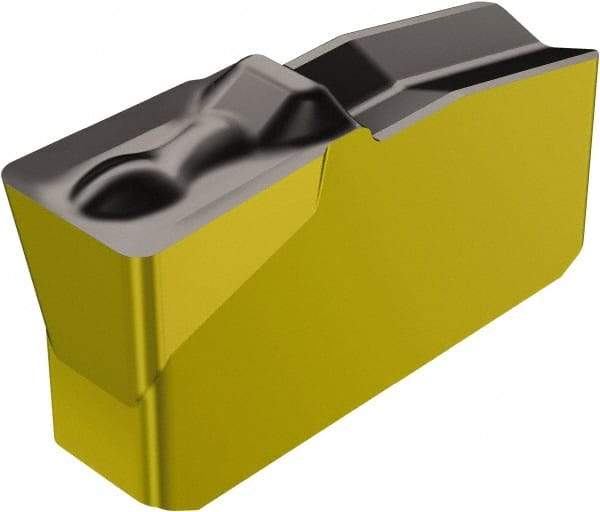

Sandvik Coromant - 4008N151.2 4T Grade 4225, 4mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49346182
Brand: Sandvik Coromant
Model #: 5736746
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 4008 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 1.80 |
| Manufacturer's Grade | 4225 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | 4T |
| Corner Radius (mm) | 0.80 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| ISO Number | N15124008404T4225 |
| Manufacturers Catalog Number | 5736746 |
