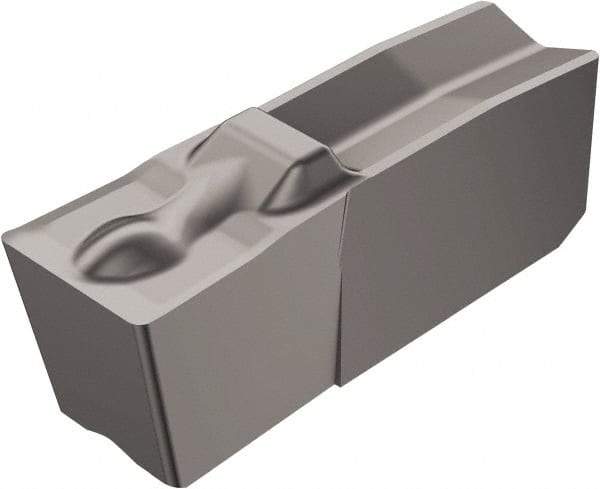

Sandvik Coromant - 09425N151.3 4G Grade H13A, 2.39mm Cutting Width Carbide Grooving Insert - Neutral, 0.18mm Corner Radius, Uncoated
Item #: 49345903
Brand: Sandvik Coromant
Model #: 5737978
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 09425 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 11 |
| Insert Seat Size | 25 |
| Chipbreaker | 4G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.18 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Series | T-Max Q-Cut |
| ISO Number | N1513A094254GH13A |
| Manufacturers Catalog Number | 5737978 |
| Insert Thickness (Decimal Inch) | 0.2083 |
| Insert Thickness (mm) | 5.2900 |
