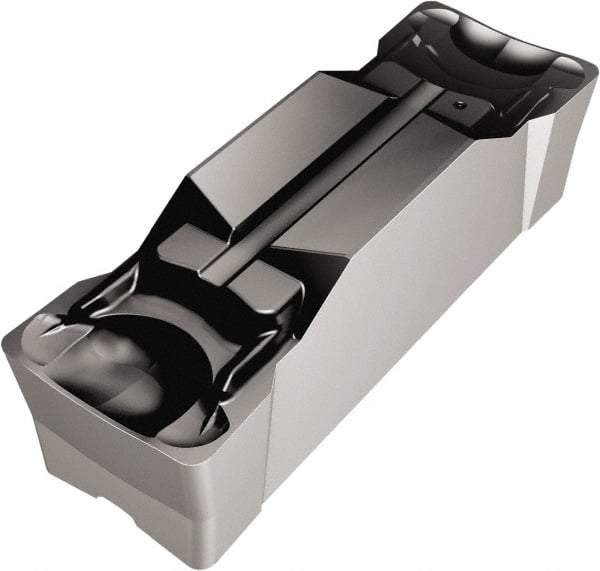

Sandvik Coromant - L2N123 GM Grade 3115, 8mm Cutting Width Carbide Grooving Insert - 28.4mm Max Depth of Cut, Neutral, 0.5mm Corner Radius, TiCN/Al2O3 Finish
Item #: 49345606
Brand: Sandvik Coromant
Model #: 5737526
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | L2 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 28.40 |
| Maximum Depth of Cut (Decimal Inch) | 1.1181 |
| Manufacturer's Grade | 3115 |
| Coating | TiCN/Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | L |
| Chipbreaker | GM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | MT-CVD |
| Series | CoroCut 1-2 |
| ISO Number | N123L208000005GM3115 |
| Manufacturers Catalog Number | 5737526 |
| Insert Thickness (Decimal Inch) | 0.2382 |
| Insert Thickness (mm) | 6.0500 |
