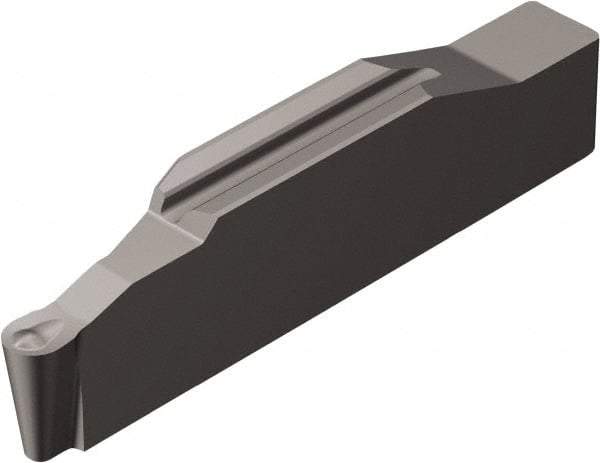

Sandvik Coromant - 0200R123 Grade 1105, 2mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Right Hand, 1mm Corner Radius, TiAlN2 Finish
Item #: 49345374
Brand: Sandvik Coromant
Model #: 6256903
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R123 |
| Insert Size | 0200 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 6256903 |
