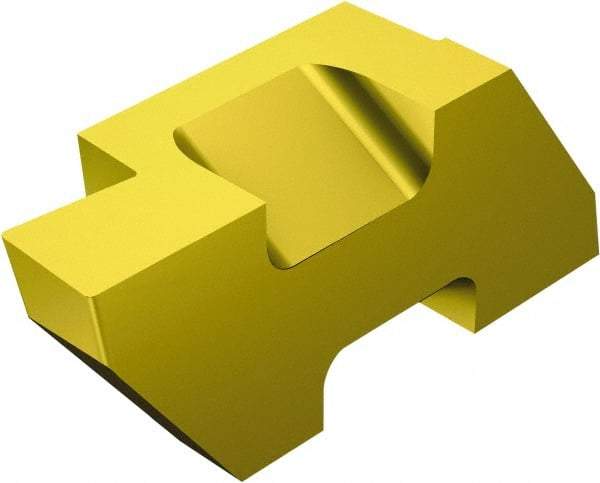

Sandvik Coromant - 2031TLG Grade 2135, 0.031" Cutting Width Carbide Grooving Insert - 0.05" Max Depth of Cut, Right Hand, 0.09mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49345358
Brand: Sandvik Coromant
Model #: 5753177
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLG |
| Insert Size | 2031 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0310 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 10 |
| Insert Seat Size | 2 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.09 |
| Corner Radius (Decimal Inch) | 0.0035 |
| Coating Process | MT-CVD |
| Series | Top Lok |
| ISO Number | TLG2031R2135 |
| Manufacturers Catalog Number | 5753177 |
| Insert Thickness (Decimal Inch) | 0.2190 |
| Insert Thickness (mm) | 5.5626 |
