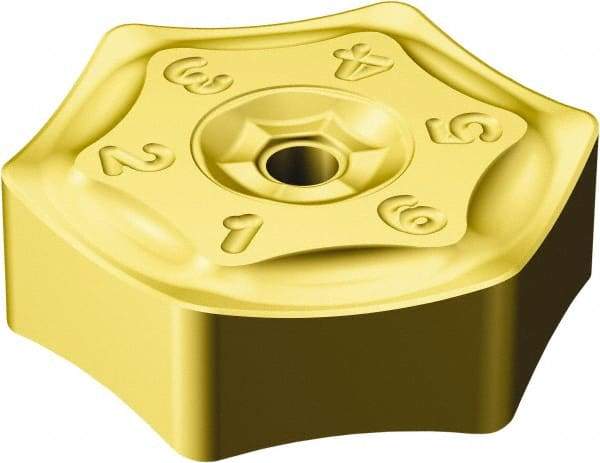

Sandvik Coromant - HNMF090516 KH Grade 1020 Carbide Milling Insert - TiAlN Finish, 5.56mm Thick, 16.2mm Inscribed Circle, 1.6mm Corner Radius
Item #: 49342298
Brand: Sandvik Coromant
Model #: 6169462
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNMF |
| Insert Size | 090516 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Width (mm) | 9.00 |
| Width (Decimal Inch) | 0.3543 |
| Inscribed Circle (mm) | 16.20 |
| Inscribed Circle (Decimal Inch) | 0.6378 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Relief Angle | 0.000 |
| Rake Angle | 11 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | KH |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 6169462 |
| ISO Number | HNMF 09 05 16KH 1020 |
