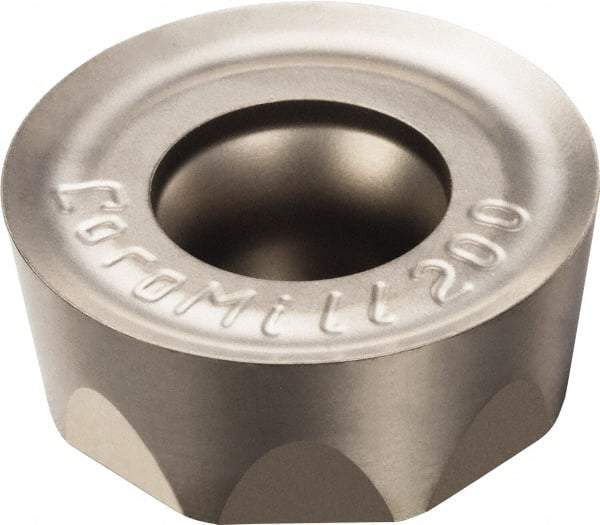

Sandvik Coromant - RCHT1606M0 KL Grade H13A Carbide Milling Insert - Uncoated, 6.35mm Thick, 16mm Inscribed Circle, 8mm Corner Radius
Item #: 49341779
Brand: Sandvik Coromant
Model #: 5740014
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHT |
| Insert Size | 1606M0 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 7.000 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | KL |
| Maximum Depth of Cut (mm) | 2.34 |
| Maximum Depth of Cut (Decimal Inch) | 0.0921 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5740014 |
| ISO Number | RCHT 16 06 M0-KL H13A |
