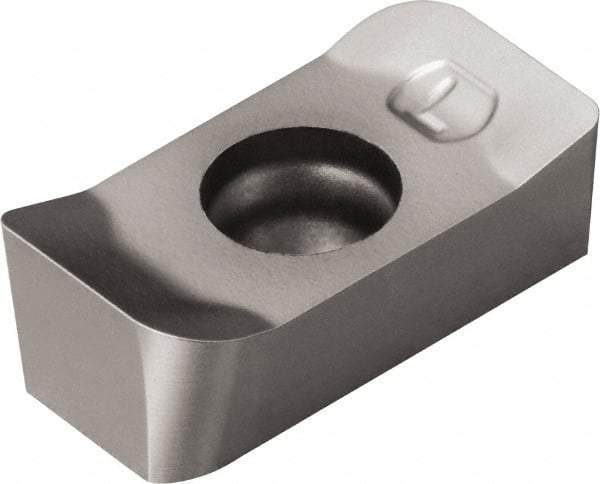

Sandvik Coromant - R331.1A115023 WL Grade H10F Carbide Milling Insert - Uncoated, 4.95mm Thick, 11mm Inscribed Circle, 2.3mm Corner Radius
Item #: 49341563
Brand: Sandvik Coromant
Model #: 5744634
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R331.1A |
| Insert Size | 115023 |
| Material | Carbide |
| Manufacturer's Grade | H10F |
| Coating | Uncoated |
| Width (mm) | 11.50 |
| Width (Decimal Inch) | 0.4528 |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Corner Radius (Decimal Inch) | 0.0906 |
| Corner Radius (mm) | 2.30 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 0.000 |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | WL |
| Maximum Depth of Cut (mm) | 10.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.4213 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5744634 |
| ISO Number | R331.1A-11 50 23H-WLH10F |
