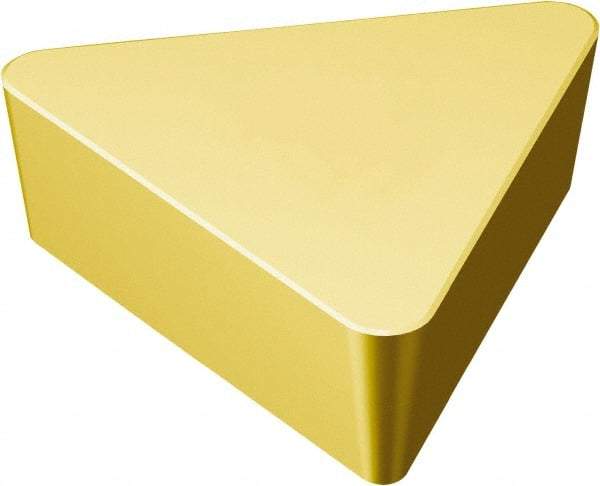

Sandvik Coromant - TPC22 Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 1/8" Thick, 1/4" Inscribed Circle
Item #: 49341506
Brand: Sandvik Coromant
Model #: 5754768
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPC |
| Insert Size | 22 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 9.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.3622 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5754768 |
| ISO Number | TPCN 11 03 PP 235 |
