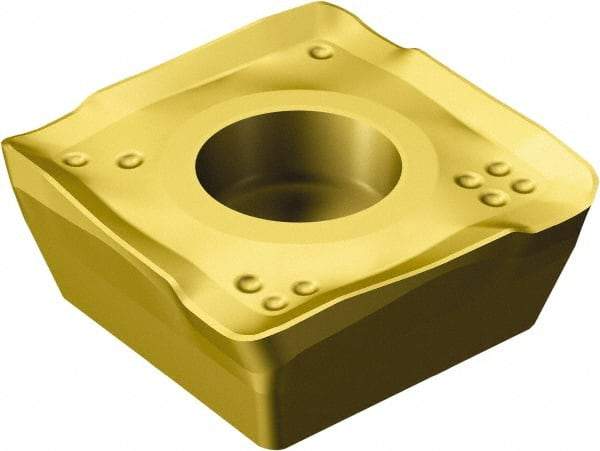

Sandvik Coromant - 490R140416 PM Grade 1020 Carbide Milling Insert - TiAlN Finish, 4mm Thick, 14mm Inscribed Circle, 1.6mm Corner Radius
Item #: 49341241
Brand: Sandvik Coromant
Model #: 5922154
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 490R |
| Insert Size | 140416 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 14.00 |
| Inscribed Circle (Decimal Inch) | 0.5512 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 16.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5922154 |
| ISO Number | 490R-140416M-PM 1020 |
