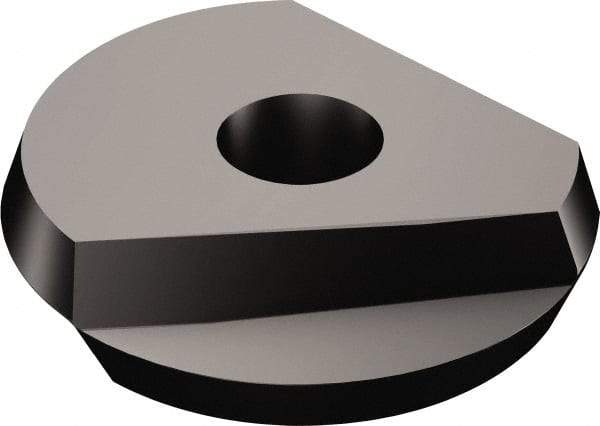

Sandvik Coromant - RA216F1640 EL Grade 1010 Carbide Milling Insert - TiAlN2 Finish, 4mm Thick, 5/8" Inscribed Circle, 5/16" Corner Radius
Item #: 49339435
Brand: Sandvik Coromant
Model #: 5738639
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RA216F |
| Insert Size | 1640 |
| Material | Carbide |
| Manufacturer's Grade | 1010 |
| Coating | TiAlN2 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.3125 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Ball Nose |
| Insert Hand | Right Hand |
| Chipbreaker | EL |
| Maximum Depth of Cut (Decimal Inch) | 0.3125 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5738639 |
| ISO Number | RA216F-16 40 E-L 1010 |
