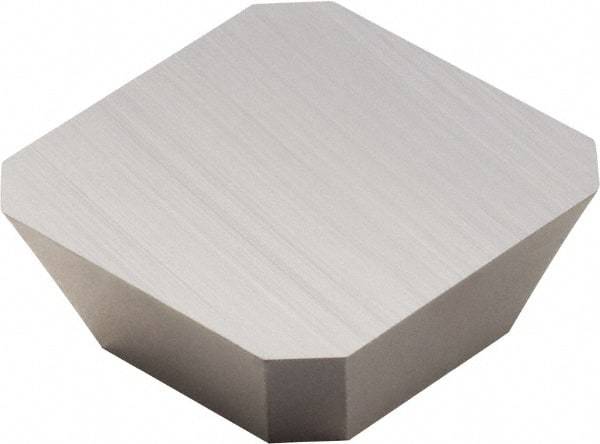

Sandvik Coromant - SEM43 Grade SMA Carbide Milling Insert - Uncoated, 4.76mm Thick, 12.7mm Inscribed Circle, 1.2mm Corner Radius
Item #: 49339153
Brand: Sandvik Coromant
Model #: 5749484
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEM |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | SMA |
| Coating | Uncoated |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5749484 |
| ISO Number | SEMN 12 04 AZ SMA |
